Description
landing gear controller Xicoy LGC25L Controller and sequencer for electric landing gearXicoy LGC25L Controller and sequencer for electric landing gear Electronic controller and sequencer for electric landing gears Controller for electric landing gear, brakes and doors Direct control of 3 motors in bidirectional mode up to 25V 6 A. Supports the different motor shut off control types currently available (time and overcurrent). Dual control of electric brakes, full proportional, lineal and adjustable pulsed mode. Adjustable voltage for

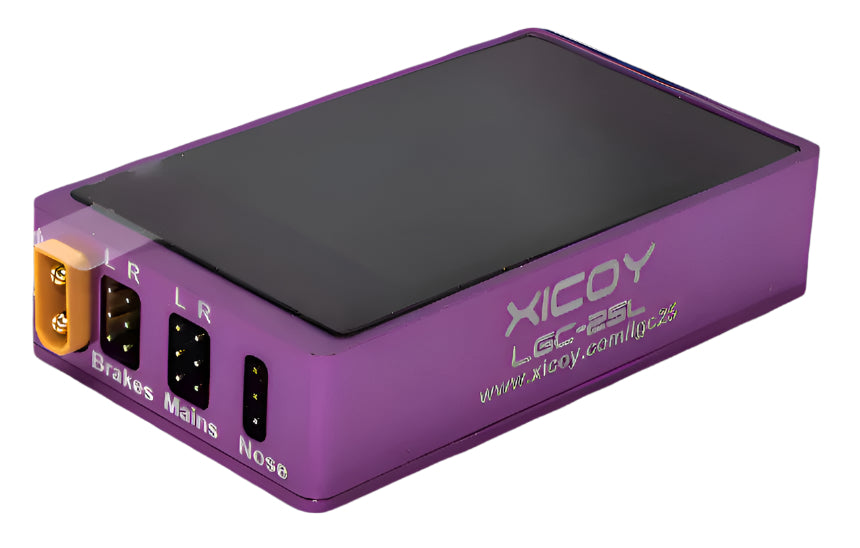

Xicoy LGC25L Controller and sequencer for electric landing gear
Electronic controller and sequencer for electric landing gears
Controller for electric landing gear, brakes and doors
Direct control of 3 motors in bidirectional mode up to 25V/6 A. Supports the different motor shut-off control types currently available (time and overcurrent).
- Dual control of electric brakes, full proportional, lineal and adjustable pulsed mode.
- Adjustable voltage for electric motors,
- Differential brake mode, to steer the model using the brakes.
- Steering servo processor. Gain, sense and center can be adjusted. The steering servo is centered during retraction.
- Internal Gyro. It can be mixed with the steering servo output and mixed to the differential brakes.
- 8 servo outputs for the control of the doors. The endpoints of each servo can be programmed individually. The Servo speed can be programmed independent in the two senses in 0,1 s resolution.
- 10 step sequencer. The position of the gears and the position of the 8 doors can be defined independent in each step. Step duration resolution in 0,1 s steps.
- Choice of RC inputs. Single RC channel and Dual RC channel.
- Programmable trough integrated color touchscreen.
- USB-C connector to save the settings and upgrade the software.
To use this controller with retracts that use the white Molex connector, add this set of cables to your order
IMPORTANT:
The motors on the retract can be damaged if overloaded due to improper programming. For this reason, Xicoy WILL NOT provide any settings for any brand, all information provided is the one contained in the user's manual. Always contact the manufacturer of the retracts to get the proper settings for your gear.
WANT A CLEAN INSTALLATION?
Get your Flush mount installation part from us HERE
MANUAL:
